Flutter Google Login with Firebase

Dart and Flutter

I tried Google login from a Flutter application because Android users have Google account and it is easier for a user to make an application data backup to Google Drive. I tried to do both login and upload data to Google Drive at once but it took a while to understand what to do for the login. Therefore, this article handles only the login process.

The example code is in my repository but you have to follow the steps described in this article because a necessary file google-services.json is not included in the repository.

flutter_samples/google_drive.dart at main · yuto-yuto/flutter_samples
Contribute to yuto-yuto/flutter_samples development by creating an account on GitHub.
Sponsored links

Create a project in Google Cloud Platform

First of all, let’s create a project in Google Cloud Platform. I think you can create a project without any problems. Once a project is created, go to the credentials page.

credentials

Click Create Credentials and OAuth client ID

create-credentials

Select Android and input necessary information.

OAuth

The package name must be the same as the value specified to package in android\app\src\main\AndroidManifest.xml.

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.flutter_samples">

Download google-services.json and place it to android\app\google-services.json.

I added google-service.json into .gitignore to avoid uploading the file because this article is a guide to use Firebase with YOURsettings.

How to create SHA-1 credentials fingerprint in VSCode

  1. Go to android directory
  2. Execute Gradle command ./gradlew signingReport
$ ./gradlew signingReport

Welcome to Gradle 6.7!

Here are the highlights of this release:
 - File system watching is ready for production use
 - Declare the version of Java your build requires
 - Java 15 support

For more details see https://docs.gradle.org/6.7/release-notes.html

Starting a Gradle Daemon, 1 incompatible and 1 stopped Daemons could not be reused, use --status for details
<-------------> 0% INITIALIZING [166ms]
> <-------------> 0% INITIALIZING [498ms]
<-------------> 0% INITIALIZING [885ms]
<-------------> 0% CONFIGURING [2s]
<-------------> 0% CONFIGURING [4s]
<-------------> 0% CONFIGURING [6s]es of :classpath
<-------------> 0% CONFIGURING [9s]
> <-------------> 0% CONFIGURING [11s]encies of classpath
<=============> 100% CONFIGURING [13s]

> Task :app:signingReport12s]
Variant: debug
Config: debug
Store: C:\Users\yuton\.android\debug.keystore
Alias: AndroidDebugKey
MD5: key for MD5
SHA1: Key for SHA1
SHA-256: Key for SHA-256
Valid until: 2048年5月23日
----------
Variant: release
Config: debug
Store: C:\Users\yuton\.android\debug.keystore
Alias: AndroidDebugKey
MD5: key for MD5
SHA1: Key for SHA1
SHA-256: Key for SHA-256
Valid until: 2048年5月23日
...

Select Scopes

We need to select the necessary scopes. In this article, we will select the following.

scope

If the item is not included in your list, the API has not been enabled yet. Let’s enable the API in this case. Go to API Library page

library-menu

Then, click Google Drive API

google-drive-api

Click the ENABLEbutton here.

drive-enabled

Once it’s enabled and the scopes page is reloaded, the new items are shown.

Add test users

We create a test application. Therefore, we have to add test users. If we don’t add the user here, the Flutter application keeps showing a loading icon and is frozen.

add-test-user

Create Firebase Project

The next step is to create a new Firebase project here. After creating a project, click Android. The menu is shown on the top page of the project.

select-android

Go to the Authentication page and select Google from the sign-in method. Select others if you need them.

select-signin-method

Implementation of Google sign-in

Add dependencies

pubspec.yaml

Add 4 dependencies into pubspec.yaml file.

dependencies:
  flutter:
    sdk: flutter
  googleapis: ^7.0.0
  google_sign_in: ^5.2.1
  firebase_auth:
  firebase_core:

Android build.gradle

android\build.gradle

dependencies {
    classpath 'com.android.tools.build:gradle:4.1.0'
    classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlin_version"
    classpath 'com.google.gms:google-services:4.3.10'   // Add this
}

android\app\build.gradle

apply plugin: 'com.android.application'
apply plugin: 'kotlin-android'
apply plugin: 'com.google.gms.google-services'  // Add this

...

    defaultConfig {
        // TODO: Specify your own unique Application ID (https://developer.android.com/studio/build/application-id.html).
        applicationId "com.example.flutter_samples"
        minSdkVersion 20    // This must be 19 or later
        targetSdkVersion 30
        versionCode flutterVersionCode.toInteger()
        versionName flutterVersionName
    }

...

dependencies {
    implementation "org.jetbrains.kotlin:kotlin-stdlib-jdk7:$kotlin_version"
    implementation platform('com.google.firebase:firebase-bom:29.0.1')  // Add this
    implementation 'com.google.firebase:firebase-analytics' // Add this
}

If the minSdkVersion is smaller than 19, the following error occurs.

Launching lib\main.dart on Android SDK built for x86 in debug mode...
...\flutter_samples\android\app\src\debug\AndroidManifest.xml Error:
    uses-sdk:minSdkVersion 16 cannot be smaller than version 19 declared in library [com.google.firebase:firebase-analytics:20.0.0] ...\gradle\caches\transforms-2\files-2.1\93b0a1d9f850837cc791e1bdd9d913db\jetified-firebase-analytics-20.0.0\AndroidManifest.xml as the library might be using APIs not available in 16
    Suggestion: use a compatible library with a minSdk of at most 16,
        or increase this project's minSdk version to at least 19,
        or use tools:overrideLibrary="com.google.firebase.firebase_analytics" to force usage (may lead to runtime failures)

FAILURE: Build failed with an exception.

* What went wrong:
Execution failed for task ':app:processDebugMainManifest'.
> Manifest merger failed : uses-sdk:minSdkVersion 16 cannot be smaller than version 19 declared in library [com.google.firebase:firebase-analytics:20.0.0] ...\gradle\caches\transforms-2\files-2.1\93b0a1d9f850837cc791e1bdd9d913db\jetified-firebase-analytics-20.0.0\AndroidManifest.xml as the library might be using APIs not available in 16
      Suggestion: use a compatible library with a minSdk of at most 16,
          or increase this project's minSdk version to at least 19,
          or use tools:overrideLibrary="com.google.firebase.firebase_analytics" to force usage (may lead to runtime failures)

* Try:
Run with --stacktrace option to get the stack trace. Run with --info or --debug option to get more log output. Run with --scan to get full insights.

* Get more help at https://help.gradle.org

BUILD FAILED in 1m 53s
Exception: Gradle task assembleDebug failed with exit code 1
Exited (sigterm)

Sign-in implementation

We need to import the following 3 modules.

import 'package:googleapis/drive/v3.dart';
import 'package:google_sign_in/google_sign_in.dart';
import 'package:firebase_auth/firebase_auth.dart';

The dart implementation is simple.

Future<void> _signIn() async {
  final googleUser = await googleSignIn.signIn();

  try {
    if (googleUser != null) {
      final googleAuth = await googleUser.authentication;
      final credential = GoogleAuthProvider.credential(
        accessToken: googleAuth.accessToken,
        idToken: googleAuth.idToken,
      );
      final UserCredential loginUser =
          await FirebaseAuth.instance.signInWithCredential(credential);

      assert(loginUser.user?.uid == FirebaseAuth.instance.currentUser?.uid);
      print("Sign in");
      _loginStatus = true;
    }
  } catch (e) {
    print(e);
  }
}

We need to initialize our app once. Otherwise, the following error occurs.

No Firebase App '[DEFAULT]' has been created - call Firebase.initializeApp()

Let’s add the function call in main.

void main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp();

  runApp(...

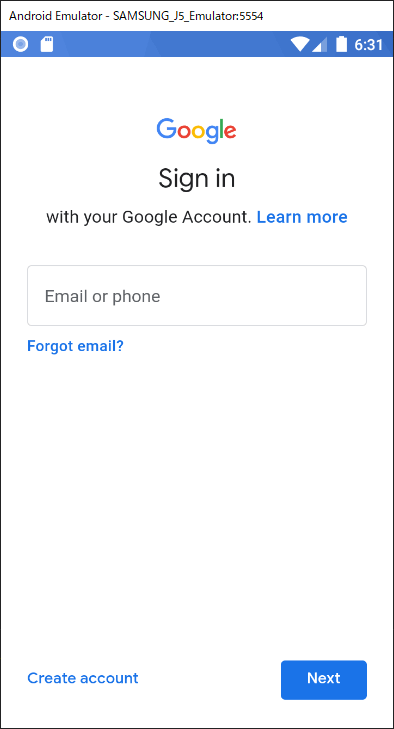

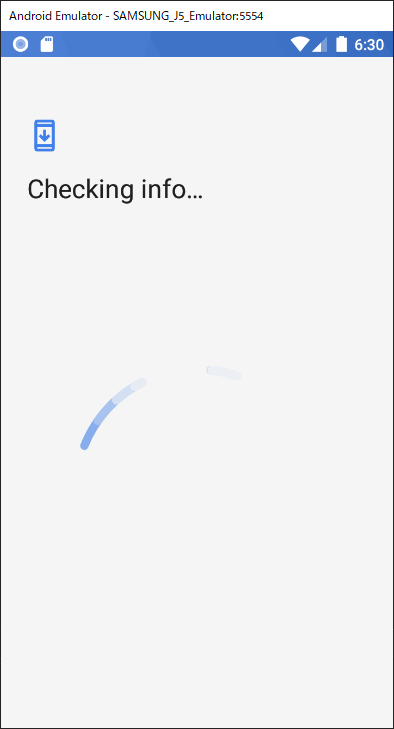

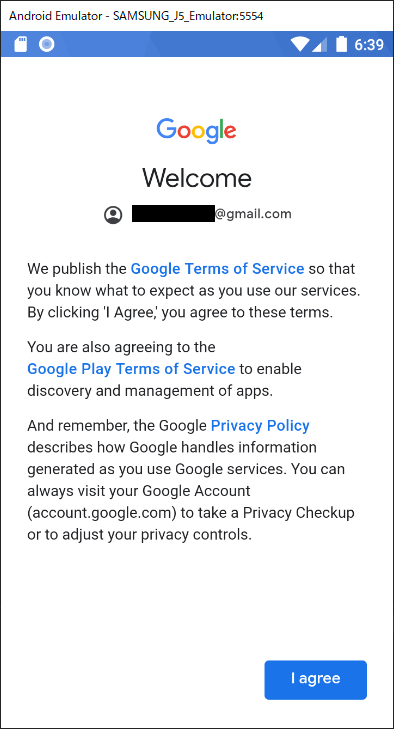

We don’t have to implement the login screen because GoogleSignIn.signIn() does it for us. The screens look like the following.

Google account is used to log in Firebase in the code above. That’s why we have two sign-in function calls. googleSignIn.signIn() function returns current user info if the session is alive. If we need another login process, it must be signed out in advance.

The screen was quite slow on my machine. I don’t know why but I guess it is only in debug mode.

Sign-out implementation

Sign-out is simpler than sing-in. Make sure that we need to sign out from both Firebase and Google.

Future<void> _signOut() async {
  await FirebaseAuth.instance.signOut();
  await googleSignIn.signOut();
  _loginStatus = false;
  print("Sign out");
}

You might also want to check

A user needs to do the login process again if the app is closed and opened again. This post explains how to keep the login state.
